Webhook delivery resilience testing

Test how your app handles it when the webhook endpoint you’re calling rejects duplicates, returns auth errors, or is temporarily unavailable — using Dev Proxy.

Summary

This sample simulates how a remote webhook endpoint can respond to your delivery attempts. Use it to validate how your sender handles duplicate-rejection errors, sequence conflicts, signature failures, and transient overloads.

Dev Proxy intercepts calls to https://webhooks.contoso.com/deliveries/* and returns the configured responses, so you can test locally before these failures surface in production.

Typical use case

Imagine your app is a platform that notifies downstream services, like a merchant dashboard or a fulfilment system whenever key events occur. Your app sends events like payment.created or payment.succeeded to an external webhook endpoint it owns or manages. In real life, that endpoint may:

• Reject a delivery because it already processed that event ID
• Reject a delivery because events arrived out of order
• Reject a delivery because the signature doesn’t match
• Be temporarily overloaded and ask you to retry later

This sample lets you test how your delivery code handles those responses locally before they happen in production.

Compatibility

Contributors

• Lovy Jain

Version history

Minimal path to awesome

• Get the sample:

  • Download just this sample:

    npx gitload-cli https://github.com/pnp/proxy-samples/tree/main/samples/webhook-delivery-resilience

    or

  • Download as a .ZIP file and unzip it, or

  • Clone this repository

• Start Dev Proxy:

  devproxy

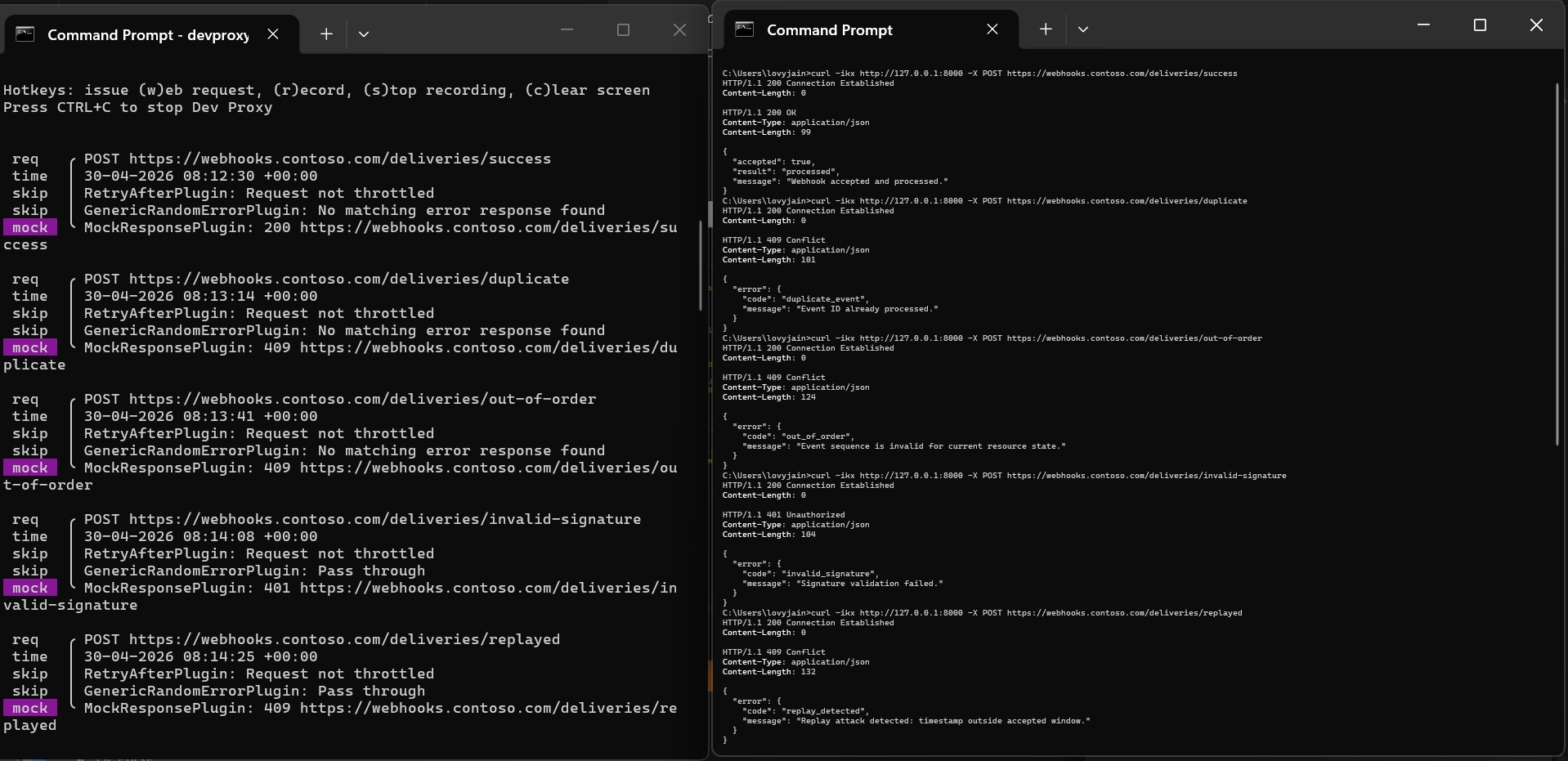

• Exercise each scenario using curl through Dev Proxy:

  # Happy path
  curl -ikx http://127.0.0.1:8000 -X POST https://webhooks.contoso.com/deliveries/success

  # Duplicate event ID
  curl -ikx http://127.0.0.1:8000 -X POST https://webhooks.contoso.com/deliveries/duplicate

  # Out-of-order event sequence
  curl -ikx http://127.0.0.1:8000 -X POST https://webhooks.contoso.com/deliveries/out-of-order

  # Invalid signature
  curl -ikx http://127.0.0.1:8000 -X POST https://webhooks.contoso.com/deliveries/invalid-signature

  # Replay detection
  curl -ikx http://127.0.0.1:8000 -X POST https://webhooks.contoso.com/deliveries/replayed

  # Transient failure / eventual success path
  curl -ikx http://127.0.0.1:8000 -X POST https://webhooks.contoso.com/deliveries/transient

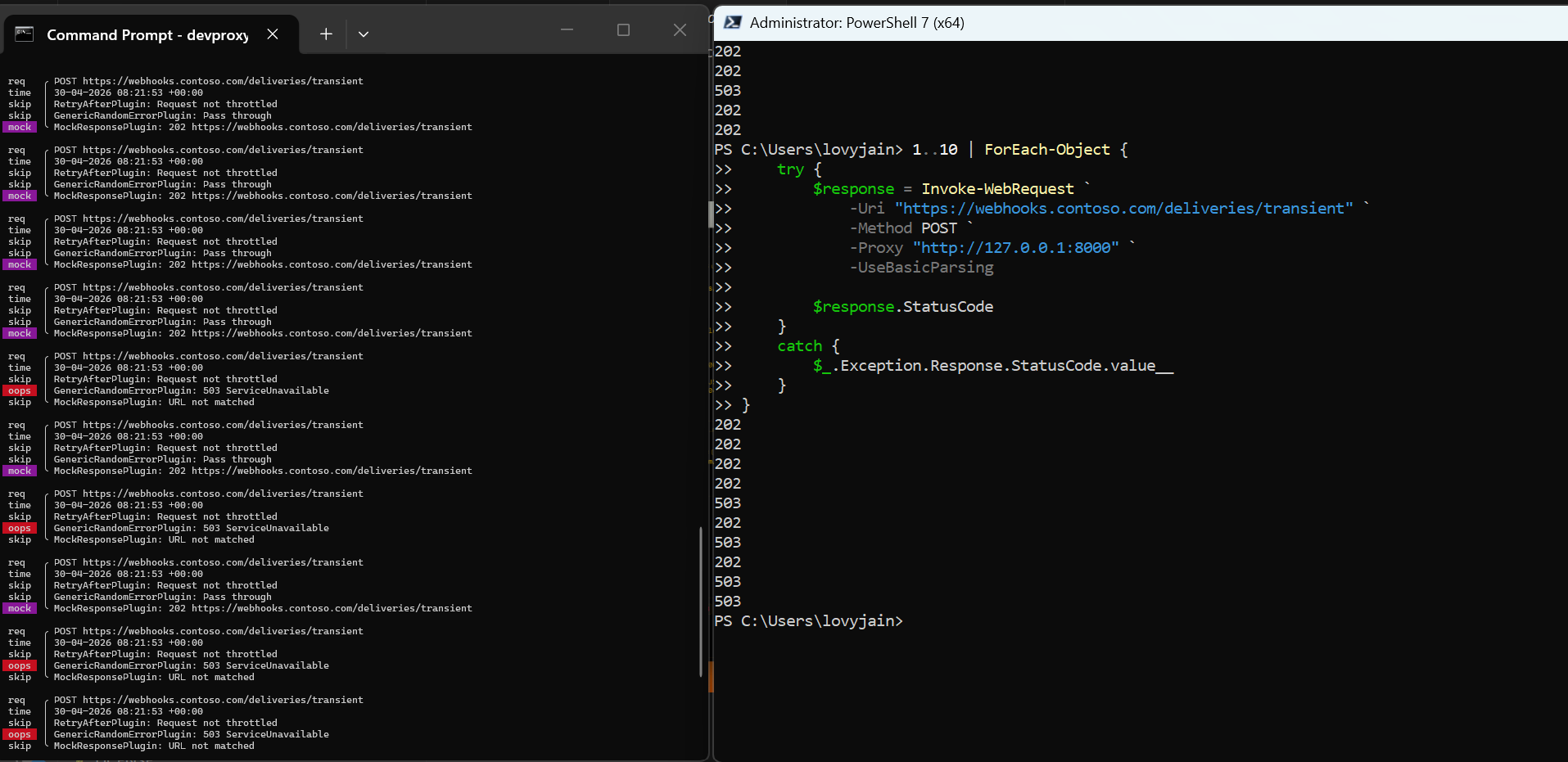

  # Run transient several times to see both outcomes (503 and 202)
  for i in {1..10}; do curl -ikx http://127.0.0.1:8000 -X POST https://webhooks.contoso.com/deliveries/transient; done

Features

This sample includes deterministic and transient webhook behaviors:

• Duplicate event rejection (409 duplicate_event)
• Out-of-order event rejection (409 out_of_order)
• Signature validation failure (401 invalid_signature)
• Replay attack detection (409 replay_detected)
• Transient receiver overload with dynamic Retry-After (503 delivery_backpressure)
• Eventual success for transient delivery attempts (202 queued)

Note: the transient route uses a 50% error rate, so repeated calls intentionally alternate between temporary failure and success.

Using this sample you can:

• Verify idempotency implementation for webhook event IDs
• Test sequence validation logic for related event types
• Validate signature verification and replay-window checks
• Exercise retry logic that respects Retry-After headers
